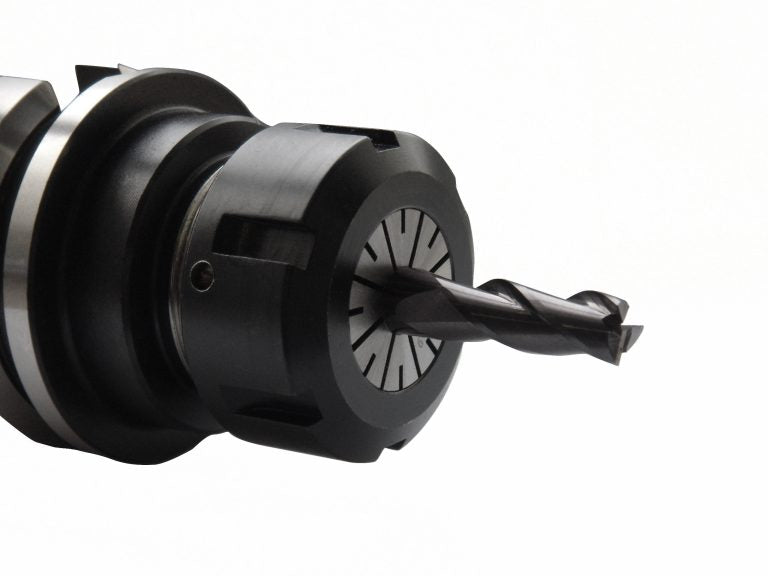

Are you taking care of your HSK, ISO, BT and CAT tool holders properly?

Are you taking care of your HSK, ISO, BT and CAT tool holders properly?

How to Maintain HSK, ISO, BT and CAT Tool Holders for Maximum Performance

In CNC machining, tool holders are essential for precision, stability, and cutting quality. Whether using HSK, ISO, BT, or CAT tool holders, regular maintenance is critical to:



✅ Ensure consistent accuracy by reducing runout and vibration.
✅ Extend tool holder life by preventing wear and damage.
✅ Improve CNC productivity by minimizing downtime and scrap.



Without proper maintenance, oil, dust, coolant, and chips can affect spindle taper contact, causing poor clamping force, spindle wear, and loss of machining accuracy.



Proper CNC Tool Holder Maintenance Procedure



1️⃣ Inspect Before Use



Before installing the tool holder, always inspect:



  • Dust, chips, or oil residue on the taper.
  • Rust or oxidation marks.
  • Dents, burrs, or impact damage on contact surfaces.
  • Wear on the collet seat or clamping nut area.



Machtechsolution Technical Tip: Even minor contamination may compromise concentricity and generate vibration during machining.



2️⃣ Clean the Tool Holder



To maintain precision and reliability:



  • Clean the taper using a lint-free cloth.
  • Use a taper cleaner for the spindle taper seat.
  • Remove chips and dust from the collet pocket.
  • Use only non-aggressive cleaning products.



Warning: Never use abrasive tools or steel brushes that could damage ground precision surfaces.



3️⃣ Lubrication and Protection



After cleaning:



  • Apply a light anti-corrosion protective oil film.
  • Remove any excess oil before installation.
  • Keep taper contact surfaces dry and clean.



Excess lubricant may attract dust and negatively affect clamping performance.



4️⃣ Proper Storage



When not in use:



  • Store tool holders in dedicated racks or holders.
  • Keep them in a clean, dry environment.
  • Avoid impact between taper surfaces.
  • Do not leave tool holders unnecessarily mounted in the machine.



Specific Recommendations by Tool Holder Type



HSK Tool Holders



HSK tool holders rely on dual contact between taper and flange and require perfectly clean surfaces.



  • Check for contamination on the flange face.
  • Inspect for wear marks.
  • Use a taper cleaner regularly.



BT and CAT Tool Holders



BT and CAT systems require special attention to the retention knob and machine clamping system.



  • Inspect the retention knob for wear.
  • Check proper engagement of the tool forks.
  • Use correct tightening torque values.



ISO Tool Holders



ISO tool holders require close attention to taper cleanliness and the condition of the retention knob.



  • Verify that the retention knob is in good condition.
  • Check correct tightening.
  • Keep all contact surfaces clean.



When Should a Tool Holder Be Replaced?



A tool holder should be replaced when showing:



  • Cracks or deformation.
  • Excessive runout.
  • Wear on taper or tool clamping seat.
  • Damage to the retention knob.



Maximum Performance Starts with Proper Maintenance



Regular maintenance of HSK, ISO, BT, and CAT tool holders improves machining accuracy, service life, and operational safety.
