Maintaining CNC tool holders is essential for machining accuracy and tool longevity. However, securely clamping a tool holder during maintenance, assembly, or disassembly can be challenging without the right equipment.
The IMS Tool Clamper is designed to securely hold tool holders in place, allowing operators to safely perform tool changes, maintenance, and cleaning with ease.
👉 Download the IMS Tool Clamper Technical Sheet
IMS Tool Clamper: Features & Benefits

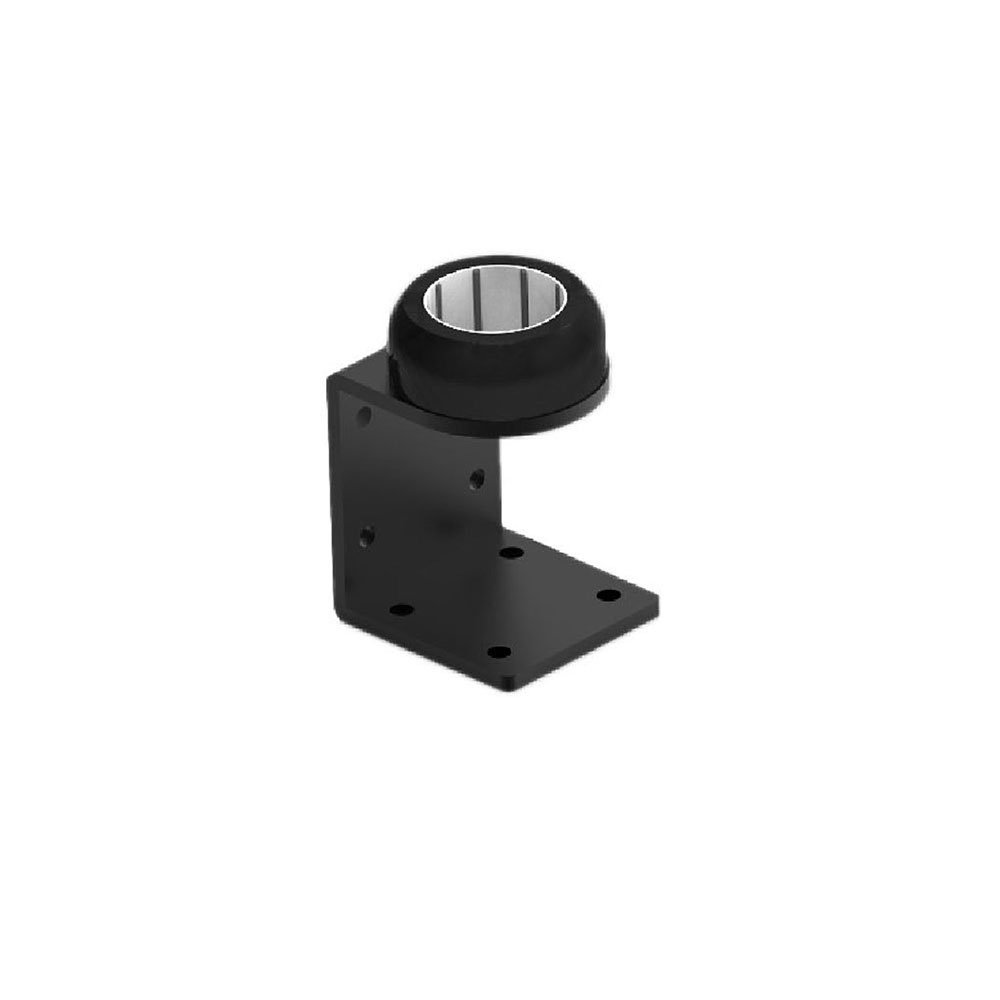

Unlike traditional clamping systems, the IMS Tool Clamper offers a secure and stable grip using an advanced roller bearing mechanism.
Key Features:
1️⃣ Secure Clamping Without Damage
✔ Roller-bearing technology ensures even pressure distribution around the tool holder.
✔ Prevents tool holder distortion while clamping.
✔ Minimizes stress on the tool holder taper, maintaining long-term precision.
2️⃣ Ergonomic & User-Friendly Design
✔ Rounded design eliminates obstructions, providing more working space.
✔ Allows the operator to access the tool holder from multiple angles for easier maintenance.
Pro Tip: The tool clamper’s design reduces hand fatigue and makes tool changes faster and safer.
3️⃣ Versatile Mounting Options
✔ Dual mounting capabilities – Can be fixed horizontally on a workbench or mounted vertically on a CNC machine.
✔ Stable and secure base for safe tool holder handling.
Pro Tip: Mounting the tool clamper vertically on the machine is ideal for small workspaces, while horizontal bench installation allows for more flexibility in tool maintenance.
4️⃣ High Durability & Stability
✔ Heavy-duty construction ensures long-lasting performance.
✔ Designed for frequent use in industrial CNC environments.
✔ Resistant to wear, vibration, and tool impact.
Explore IMS Tool Clamping Solutions
How to Use the IMS Tool Clamper for CNC Tool Holders
🔩 Step 1: Secure the Clamper
✔ Choose your preferred installation method: horizontal (workbench) or vertical (CNC machine).
✔ Securely mount the clamper using the pre-drilled holes for a firm and stable setup.
Step 2: Insert the Tool Holder
✔ Place the CNC tool holder inside the clamper, ensuring proper alignment.
✔ Let the roller bearings grip the tool holder evenly for secure, damage-free clamping.
Pro Tip: The IMS Tool Clamper works with all standard tool holders, including HSK, BT, CAT, and ISO types.
Step 3: Perform Tool Holder Maintenance
✔ Tighten or loosen tool holder nuts safely using the clamper’s secure grip.
✔ Clean tool holder tapers without risk of slipping or accidental damage.
✔ Easily swap cutting tools while keeping the tool holder firmly in place.
Pro Tip: Always ensure the tool holder is fully secured before performing maintenance or tool changes.
📊 Why Choose IMS Tool Clampers?
| Feature | IMS Tool Clamper | Standard Tool Clamping Methods |
|---|---|---|
| Secure, even clamping | ✅ Roller-bearing grip | ❌ Uneven pressure, risk of damage |
| Ergonomic design | ✅ Rounded, easy-access design | ❌ Limited tool access |
| Versatile mounting | ✅ Bench & machine mounting | ❌ Fixed mounting only |
| Durability | ✅ Industrial-grade materials | ❌ Prone to wear and instability |
📌 Upgrade your CNC tool maintenance with IMS Tool Clampers
Improve CNC Maintenance with IMS Tool Clampers
Using the IMS Tool Clamper ensures:
✔ Safe and secure tool holder handling without damage.
✔ Faster and easier tool changes for increased productivity.
✔ Extended tool holder lifespan with proper maintenance.
💡 Looking for the best tool clamping solution for your CNC shop? Contact IMS USA today!
👉 Download the IMS Tool Clamper Technical Sheet
📹 Watch our video on how to use the IMS Tool Clamper!
